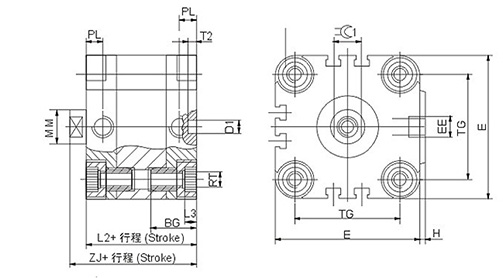

气缸尺寸表
| 内径(mm) |
D1 |
E |
EE |
H |
L2 |
L3 |
L4 |
MM |
PL |
RT |
T2 |
TG |
ZJ |
CC1 |
| 16 |
6 |
29 |
M5 |
1 |
38 |
4 |
18.5 |
8 |
8 |
M4 |
4 |
18 |
41 |
6 |
| 20 |
6 |
35.5 |
M5 |
1.5 |
38 |
4 |
18.5 |
10 |
8 |
M5 |
4 |
22 |
41 |
8 |
| 25 |
6 |
39.5 |
M5 |
1.5 |
39.5 |
4 |
18.5 |
10 |
8 |
M5 |
4 |
26 |
43.5 |
9 |
| 32 |
6 |
49.5 |
G1/8 |
2 |
44.5 |
5 |
22 |
12 |
8 |
M6 |
4 |
32 |
49.5 |
10 |
| 40 |
6 |
59.5 |
G1/8 |
2.5 |
45.5 |
5 |
22 |
12 |
8 |
M8 |
4 |
42 |
51 |
10 |
| 50 |
6 |
68 |
G1/8 |
2.8 |
46.5 |
6 |
22 |
16 |
8 |
M8 |
4 |
50 |
53 |
14 |
| 63 |
8 |
86 |
G1/8 |
4 |
50 |
8 |
26 |
16 |
8 |
M10 |
4 |
62 |
56 |
14 |
| 80 |
8 |
108 |
G1/8 |
4 |
58 |
8 |
26 |
20 |
8.5 |
M10 |
4 |
82 |
62 |
17 |
| 100 |
8 |
128 |
G1/4 |
5 |
66.5 |
8 |
26 |
35 |
10.5 |
M10 |
4 |
103 |
76.5 |
22 |
注：从上部安装φ12和16mm气缸时，两个安装螺钉成对角线分布，或者用非磁性螺钉。+=行程长度相加2最小旋入深度
