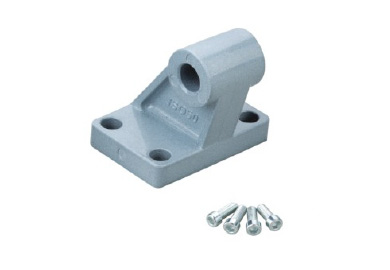

产品名称:ISO-SDB
- 服务热线:0577-57123111
- EMAIL:273620184@qq.com
- Q Q:
PDF文档下载

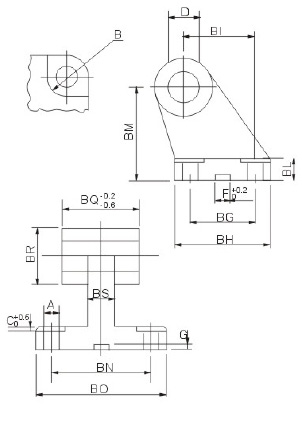

外部尺寸
符号|缸径 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
A |
6.6 |
6.6 |
9 |
9 |
11 |
11 |
14 |
B |
10 |
11 |
13 |
15 |
15 |
19 |
22.5 |
BG |
18 |
22 |
30 |
35 |
40 |
50 |
60 |
BH |
31 |
35 |
45 |
50 |
60 |
70 |
90 |
BI |
21 |
24 |
33 |
37 |
47 |
55 |
70 |
BL |
8 |
10 |
12 |
12 |
14 |
15 |
20 |
BM |
32 |
36 |
45 |
50 |
63 |
71 |
90 |
BN |
38 |
41 |
50 |
52 |
66 |
76 |
94 |
BO |
51 |
54 |
65 |
67 |
86 |
96 |
124 |
BS |
12 |
15 |
18 |
22 |
20 |
20 |
30 |
BR |
20 |
22 |
26 |
30 |
30 |
38 |
45 |
C |
1.6 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
3.2 |
D |
10 |
12 |
12 |
16 |
16 |
20 |
25 |
F |
10.5 |
10.5 |
10.5 |
10.5 |
10.5 |
10.5 |
10.5 |
G |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
BQ |
26 |
28 |
32 |
40 |
50 |
60 |
70 |
